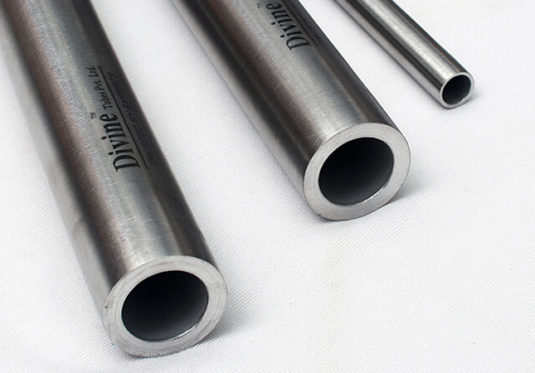

Stainless Steel Seamless Tubes, Pipes & U-tubes

Divine Tubes Pvt. Ltd. is known as one of the premier stainless steel seamless pipes & tubes manufacturers and exporters in India. Divine’s Cold Finished Tubes and Pipes are produced from quality seamless hollows or procured from trusted sellers according to certain requirements of our customers. Seamless hollows of our pipes made by using accuracy tooling that provides the tubes thorough dimension and smooth surfaces.

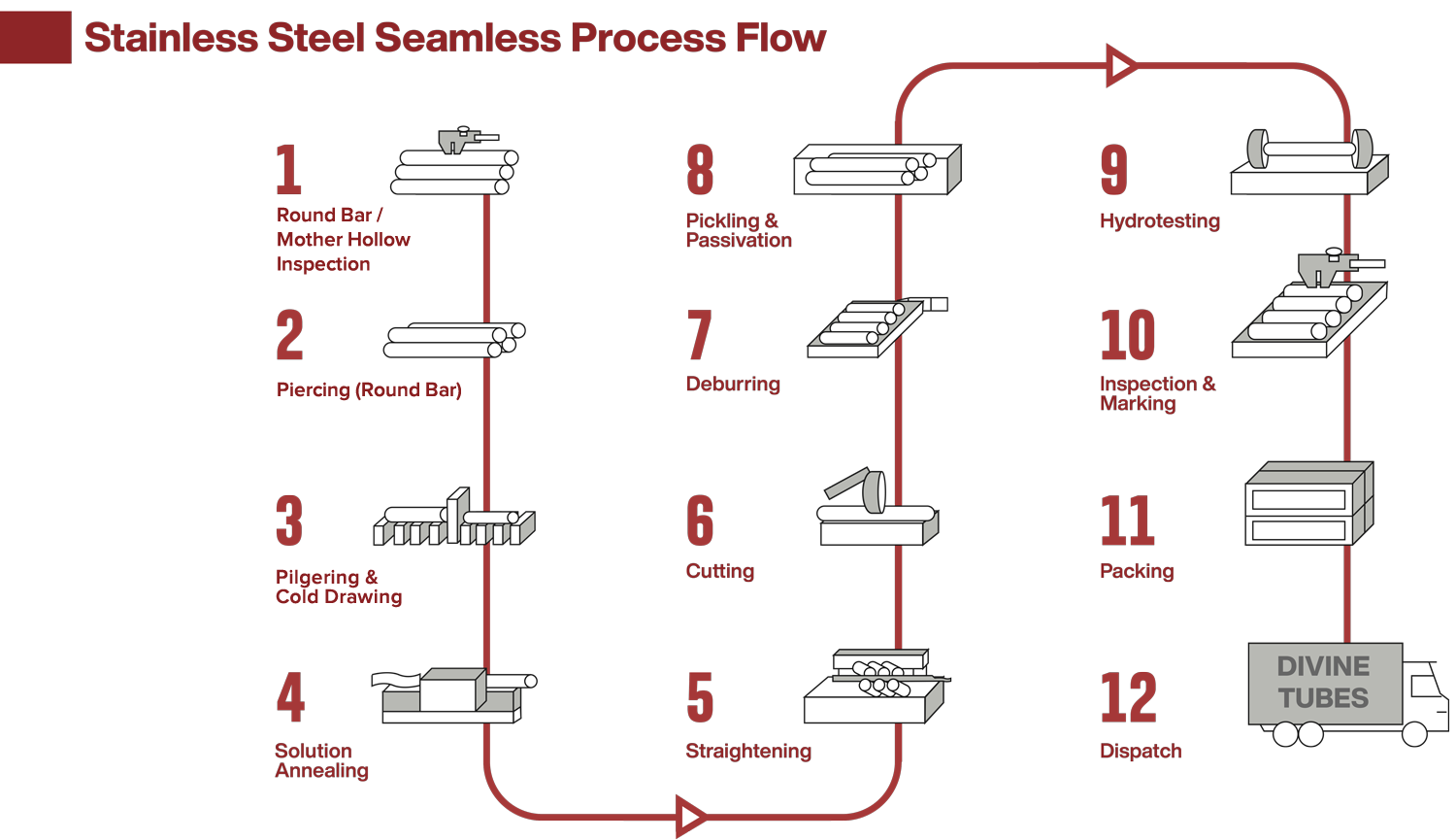

It should be observed that drawn tubes are also subject to annealing, pickling operations and straightening. Divine assures that its completed tubes and pipes undergo stringent quality tests and are packaged totally according to the requirements of our clients.

SS seamless Tubes Manufacturer

PRODUCT RANGE

Description Grade Size (Range) (Seamless) Thickness (Range) (Seamless) Length
Austenitic Stainless Steel 304/L/H, 316/L/H/TI, 321/H, 347/H, 310 Tube Diameter Pipe Diameter Tube Thickness Pipe Thickness 25 MTR
6 mm OD to 101.6 mm OD 1/8″ NB TO 8″NB 0.5 mm TO 4 mm 0.5 mm TO SCH 160
(A) ASTM/ASME – Standards
A 213 / SA 213 Seamless ferritic and austenitic alloy steel boiler, super heater and heat Exchanger Tubes
A 249 / SA 249 Welded austenitic steel boiler, Super Heater, Heat Exchanger Tubes and Condenser Tubes
A 268 / SA 268 Seamless and Welded ferritic and martensitic stainless steel tubing for general service
A 269 / SA 269 Seamless and Welded austenitic stainless steel tubing for general service
A 312 / SA 312 Austenitic stainless steel seamless pipe & S.S. Welded pipes
A 358 / SA 358 Stainless Steel Welded pipe for high temperature service
A 688 / SA 688 Welded feed water heater ‘U’ Tubes
(C) German – Standards
DIN 17455 Welded general purpose piping
DIN 17456 Seamless circular austenitic stainless steel for general service
DIN 17457 Circular austenitic stainless steel welded tubes subject to special requirement
DIN 17458 Seamless circular austenitic stainless steel tubes subject to special requirement
DIN 28180 Stainless Steel Seamless Heat Exchanger Tube
(D) NF – Standards (AFNOR Standard)
NF A 49-117 Seamless ferritic and austenitic stainless steel tubes for general services
NF A 49-217 Seamless ferritic, austenitic and ferritc-austenitic stainless steel tubes for heat exchanger
(F) JIS – Standards
JIS G 3459 S.S. Seamless pipes.
JIS G 3463 Stainless steel boiler and heat exchanger tubes
Grade DIN (EN) % C(Max) % Mn Max % P (Max) % S (Max) % SI(Max) % CR % Ni % Mo % N Max % CU Max % OTHERS
Austenitic 304 1.4301 0.080 2.00 0.045 0.030 0.75 18.00-20.00 8.00-10.50 0.10
304H 1.4948 0.04-0.10 2.00 0.045 0.030 0.75 18.00-20.00 8.00-10.50 –
304L 1.4307 0.030 2.00 0.045 0.030 0.75 18.00-20.00 8.00-12.00 – 0.10 –
304LN 1.4311 0.030 2.00 0.045 0.030 0.75 18.00-20.00 8.00-12.00 – 0.10-0.16 –
309 1.4828 0.20 2.00 0.045 0.030 0.75 22.00-24.00 12.00-15.00 –
309S 0.08 2.00 0.045 0.030 0.75 22.00-24.00 12.00-15.00 –
310 1.4841 0.025 2.00 0.045 0.030 1.50 24.00-26.00 19.00-22.00 –
310S 1.4845 0.08 2.00 0.045 0.030 1.50 24.00-26.00 19.00-22.00 –
316 1.4401 0.08 2.00 0.045 0.030 0.75 16.00-18.00 10.00-14.00 2.00-3.00 0.10 – –
316L 1.4404 0.030 2.00 0.045 0.030 0.75 16.00-18.00 10.00-14.00 2.00-3.00 0.10
316LN 0.030 2.00 0.045 0.030 0.75 16.00-18.00 10.00-14.00 2.00-3.00 0.10-0.16 – –
316Ti 1.4571 0.08 2.00 0.045 0.030 0.75 16.00-18.00 10.00-14.00 2.00-3.00 0.10 – Ti = 5X (C+N) Min., 0.70 Max.
317 1.4449 0.08 2.00 0.045 0.030 0.75 18.00-20.00 11.00-15.00 3.00-4.00 0.10 – –
317L 1.4438 0.030 2.00 0.045 0.030 0.75 18.00-20.00 11.00-15.00 3.00-4.00 0.10
317LN 0.030 2.00 0.045 0.030 0.75 18.00-20.00 11.00-15.00 3.00-4.00 0.10-0.22 –
321 1.4541 0.08 2.00 0.045 0.030 0.75 17.00-19.00 9.00-12.00 0.10 – Ti = 5X (C+N) Min., 0.70 Max.
347 1.4550 0.08 2.00 0.045 0.030 0.75 17.00-19.00 9.00-13.00 – – Cb = 10XC Min.,1.00 Max.
Ferritic + Martensitic 409 1.4512 0.080 1.00 0.040 0.020 1.00 10.50-11.75 0.50 max. – 0.030 – Ti = 6X (C+N) Min., 0.70 Max.
409RC 0.02 1.00 0.040 0.030 1.00 10.50-11.75 0.50 max. – 0.020 – Ti = 5X C Min., 0.75 Max.
409M – 0.03 0.8-1.5 0.03 0.030 1.00 10.80-12.50 1.50 max. – 0.030 – Ti = 0.75 Min.,
410 1.4006 0.15 1.00 0.040 0.030 1.00 11.50-13.50 0.75 max. –
410S 0.08 1.00 0.040 0.030 1.00 11.50-13.50 0.60 max.
Ferritic 405 – 0.80 1.00 0.04 0.030 1.00 11.50-14.50 0.60 – – Al = 0.10 – 0.30
430 1.4016 0.12 1.00 0.04 0.030 1.00 16.00-18.00 0.75 max.
430Ti – 0.030 1.00 0.04 0.030 1.00 16.00-19.00 – Ti = 0.10 -1.0
436 – 0.12 1.00 0.040 0.030 1.00 16.00-18.00 0.75-1.25 – – Cb = 5X C Min., 0.80 max.
439 – 0.07 1.00 0.04 0.03 1.0 17.00-19.00 0.5 – 0.04 – Al = 0.15, Ti = 0.2 -1.0
Stainless Steel Seamless Pipes Dimension – (S.S. Seamless Pipe)
Nominal Pipe Size Nominal Outside Diameter Wall Thickness & Weight
Sch. 5S Sch. 10S Sch. 20S Sch. 40S Sch. 80S Sch. 160S
mm Inch mm Inch Wall Thick Weight Kg/Mtr. Wall Thick Weight Kg/Mtr. Wall Thick Weight Kg/Mtr. Wall Thick Weight Kg/Mtr. Wall Thick Weight Kg/Mtr. Wall Thick Weight Kg/Mtr.
6 1/8 10.3 0.405 1 0.23 1.24 0.28 1.5 0.33 1.73 0.37 2.41 0.47 – –
8 1/4 13.7 0.54 1.2 0.37 1.65 0.49 2 0.58 2.24 0.64 3.02 0.82 – –
10 3/8 17.2 0.675 1.2 0.47 1.65 0.63 2 0.74 2.31 0.87 3.2 1.12 – –
15 1/2 21.3 0.84 1.65 0.81 2.11 1.02 2.3 1.07 2.77 1.29 3.73 1.62 4.75 1.97
20 3/4 26.7 1.05 1.65 1.05 2.11 1.3 2.5 1.52 2.87 1.71 3.91 2.93 5.56 2.93
25 1 33.4 1.315 1.65 1.03 2.77 2.13 2.5 2 3.38 2.54 4.55 3.29 6.35 4.3
32 1¼ 42.2 1.66 1.65 1.65 2.77 2.73 3 2.9 3.56 3.44 4.85 4.56 6.35 5.69
40 1½ 48.3 1.9 1.65 1.93 2.77 3.11 3 3.35 3.68 4.11 5.08 5.49 7.14 7.35
50 2 60.3 2.375 1.65 2.4 2.77 3.99 3.5 4.25 3.91 5.52 5.54 7.6 8.74 11.26
65 2½ 73.03 2.875 2.11 3.7 3.05 5.26 4 6.81 5.16 8.77 7.01 11.59 9.53 14.91
80 3 88.9 3.5 3.5 4.51 3.05 6.45 4 8.37 5.49 11.47 7.62 15.51 11.13 21.3
100 4 114.3 4.5 2.11 5.85 3.05 8.36 4.5 12.18 6.02 16.07 8.56 22.66 13.49 33.54
125 5 141.3 5.563 2.77 9.5 3.4 11.6 5 16.8 6.55 21.08 9.53 31 15.88 49.11
150 6 168.3 6.625 2.77 11.35 3.4 13.82 6.35 25.36 7.11 28.68 10.97 42.56 8.24 67.53
200 8 219.08 8.625 2.77 14.8 3.76 20 6.35 33.31 8.18 43.18 12.7 64.64 23.01 111.27
250 10 273.05 10.75 3.4 22.61 4.19 27.8 6.35 41.77 9.27 60.31 12.7 81.55 28.58 172.33
300 12 323.85 12.75 3.96 31.25 4.57 36 6.35 49.7 9.53 73.85 12.7 97.43 33.32 238.68
350 14 355.6 14 3.96 34.35 4.78 41.3 7.92 67.9 11.13 98.54 – – – –
400 16 406.4 16 4.19 41.6 4.78 47.34 7.92 77.82 12.07 123.3 – – – –
450 18 457.2 18 4.19 46.85 4.78 53.32 7.92 87.74 14.27 155.86 – – – –
500 20 508 20 4.78 59.31 5.54 68.64 9.53 117.14 15.09 183.42 – – – –
600 24 609.6 24 5.54 82.57 6.35 94.52 9.53 141.11 17.48 255.41 – – – –
Stainless Steel Seamless Tubes Dimension – (S.S. Seamless Tube)
Wall thickness in mm. 0.5 0.6 0.7 0.8 1 1.2 1.6 2 2.6 3 3.2 3.6
O.D. in mm. Weight in kg/meter
6 0.069 0.081 0.093 0.104 0.125 0.144 0.176 – – – – –
9.52 0.112 0.134 0.154 0.174 0.213 0.249 0.317 – – – – –
10 0.119 0.141 0.163 0.184 0.225 0.264 0.336 – – – – –
12.7 0.153 0.182 0.21 0.238 0.293 0.345 0.444 – – – – –
14 0.169 0.201 0.233 0.264 0.325 0.384 0.496 – – – – –
15.87 0.192 0.229 0.266 0.301 0.372 0.44 0.571 0.694 – – – –
19 0.231 0.276 0.32 0.364 0.45 0.534 0.696 0.85 1.066 1.2 1.264 –
25 0.306 0.366 0.425 0.484 0.6 0.714 0.936 1.15 1.456 1.65 1.744 1.926
25.4 0.311 0.372 0.432 0.492 0.61 0.726 0.952 1.17 1.482 1.68 1.776 1.962
31.8 – – – – – 0.918 1.208 1.49 1.898 2.16 2.288 2.538
38 – – – – – 1.104 1.456 1.8 2.301 2.625 2.784 3.096
44.5 – – – – – 1.299 1.716 2.125 2.724 3.113 3.304 3.681
50.8 – – – – – 1.488 1.968 2.44 3.133 3.585 3.808 4.248
63.5 – – – – – – 2.476 3.075 3.959 4.538 4.824 5.391
76.1 – – – – – – 2.98 3.705 4.778 5.483 5.832 6.525
101.6 – – – – – – 4 4.98 6 7 7,872 8.82
Oil and Gas Production
Oil and Gas Production
Industry
Chemical & Petrochemical
Energy Industry
Energy and Power Generation
Mechanical and Plant Engineering
Mechanical and Plant Engineering
Liquefaction Projects
Liquefaction Projects

Divine Tubes Pvt. Ltd. was incorporated in the year 1976 as a premium manufacturer of seamless stainless steel tubes, welded tubes, pipes and U-tubes in Austenitic, Ferritic and Duplex grade.
